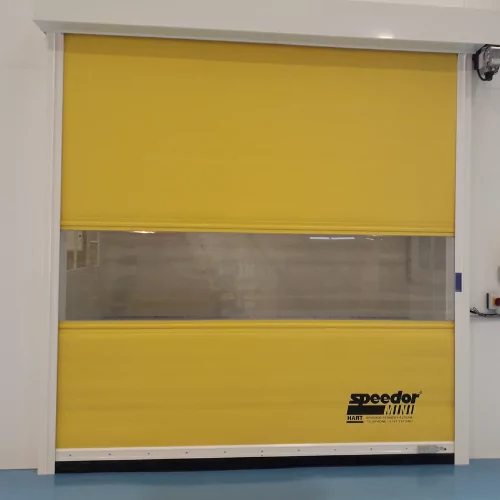

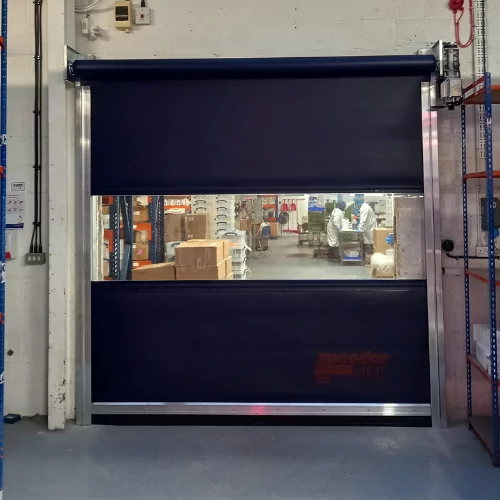

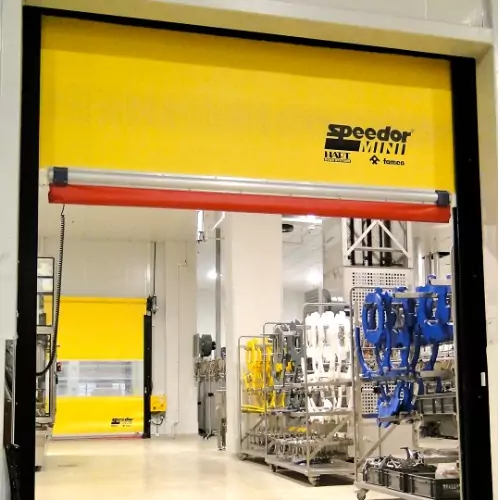

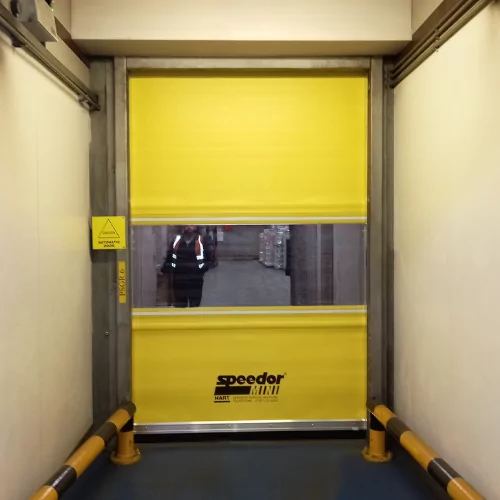

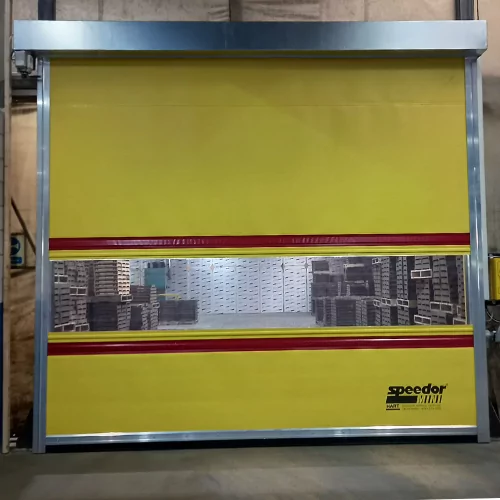

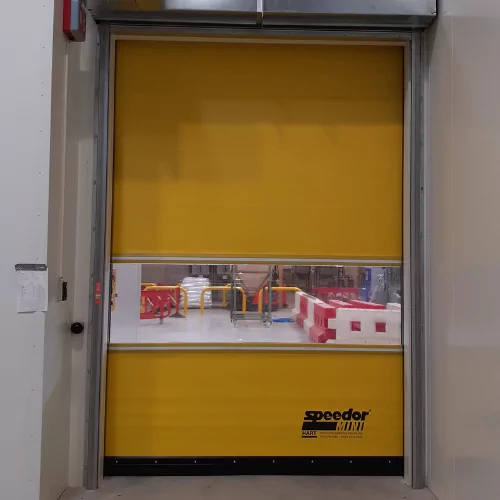

Speedor Mini internal high speed door

Speedor Mini High Speed Door

Speedor Mini

British manufactured internal high speed fabric doors

Hart's high-performance interior roller door is part of the Speedor® high speed door range. Durable in construction with high operating speeds, this entry-level mini high-speed door is big in performance but low in cost.

Speedor Mini high speed door is designed for frequent use in high traffic situations and constructed to sustain thousands of opening and closing cycles. The Mini is a proven reliable product, lowering the cost of ownership with many years of use and low maintenance costs.

A neat and convenient safe access solution, the Mini includes movement and presence sensor options. These can deliver door activation with no touch, for clean and efficient automatic operation.

The single speed, shaft driven geared motor unit gives 0.8 meters per second opening and closing speeds, with a state of the art control panel providing fully automatic operation. Safety is provided by a pedestrian protecting light curtain retained within the multipurpose aluminium extruded side guides. A lightweight 900 gram PVC coated textile door curtain delivers a great low cost door access option.

Sustainable, strong, long-lasting, and easy to repair, our industrial doors are perfect a wide range of industrial and commercial applications.

We provide you with the best service by tailoring our door to your requirements and needs.

If you’d like to speak to us about how we can help you solve logistical challenges with a completely tailored high-speed door solution, contact us today on +44 (0) 191 214 0404

Size options

  • Up to 4m high
  • Up to 4m wide

Speed options

  • Standard opening – 0.8m sec
  • Standard closing – 0.8m sec
  • Variable speed options from 0.5mps up to 1.2mps available

Colour options

Yellow Blue Red Green Grey

Features and benefits of the Mini high speed door

  • Fast open and close for maximum environmental control and energy usage reduction
  • Unique design, optimising flow of traffic and improving room climate
  • Extremely reliable making them a cost-effective solution
  • Galvanised steel construction for enhanced strength
  • Highest levels of safety to protect your personnel and equipment
  • Tested and certified for full compliance
  • UKAC/CE approved for full standard conformity
  • Technologically advanced features to boost efficiency

Design options

  • Size: Custom- size up to 4000 mm
  • Speed: Variable speed opening at up to 1.2m/s
  • Colour: Yellow, Blue, Red, Green, Grey
  • Safety: Optical touch sensitive safety bottom edge, safety photocells, movement sensors, presence sensors, laser detection, traffic lights, audible warning
  • Operators: Push button, induction loop, photocells, movement sensors, pull cords, hand held or vehicle-mounted radio transmitters, radar
  • Vision Panel
  • Hood and motor hood cover


  • Factories
  • Production Lines
  • Conveyors
  • Storage/Distribution warehouses
  • Cold Rooms
  • Food Preparation Area
  • Laboratories
  • Chemical Plant
  • Power Stations

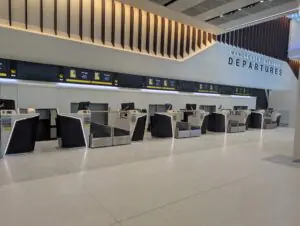

  • Airport Terminals
  • Industrial Buildings
  • Pharmaceutical
