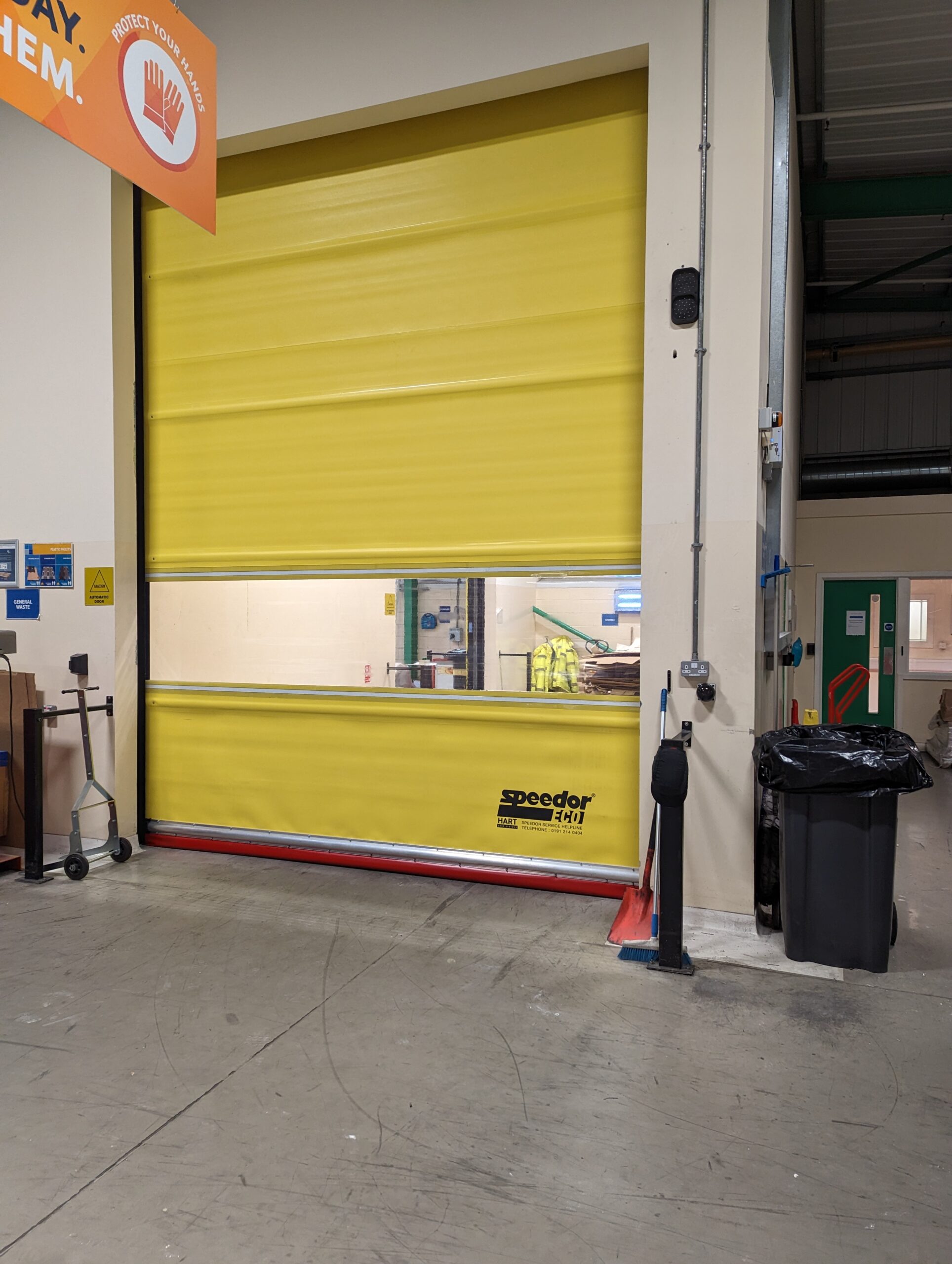

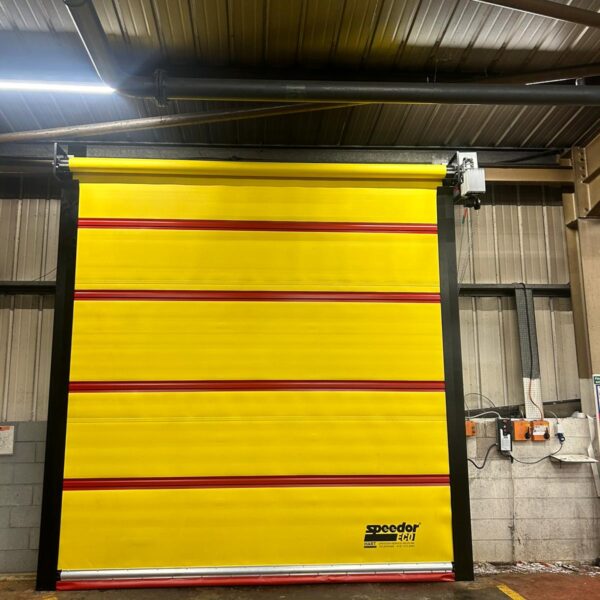

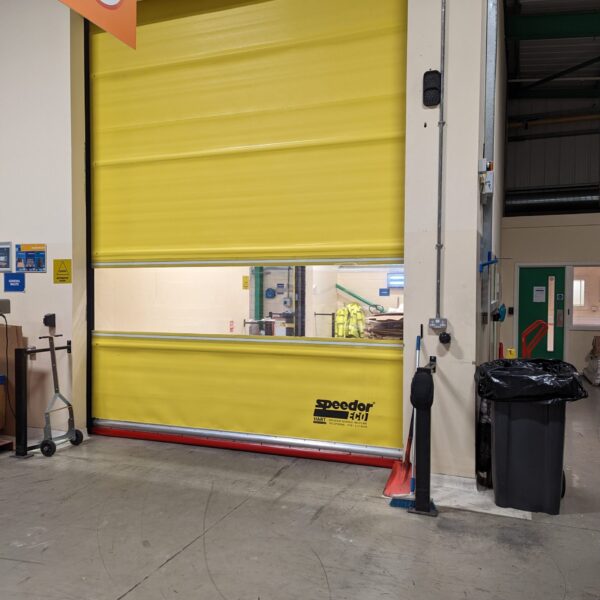

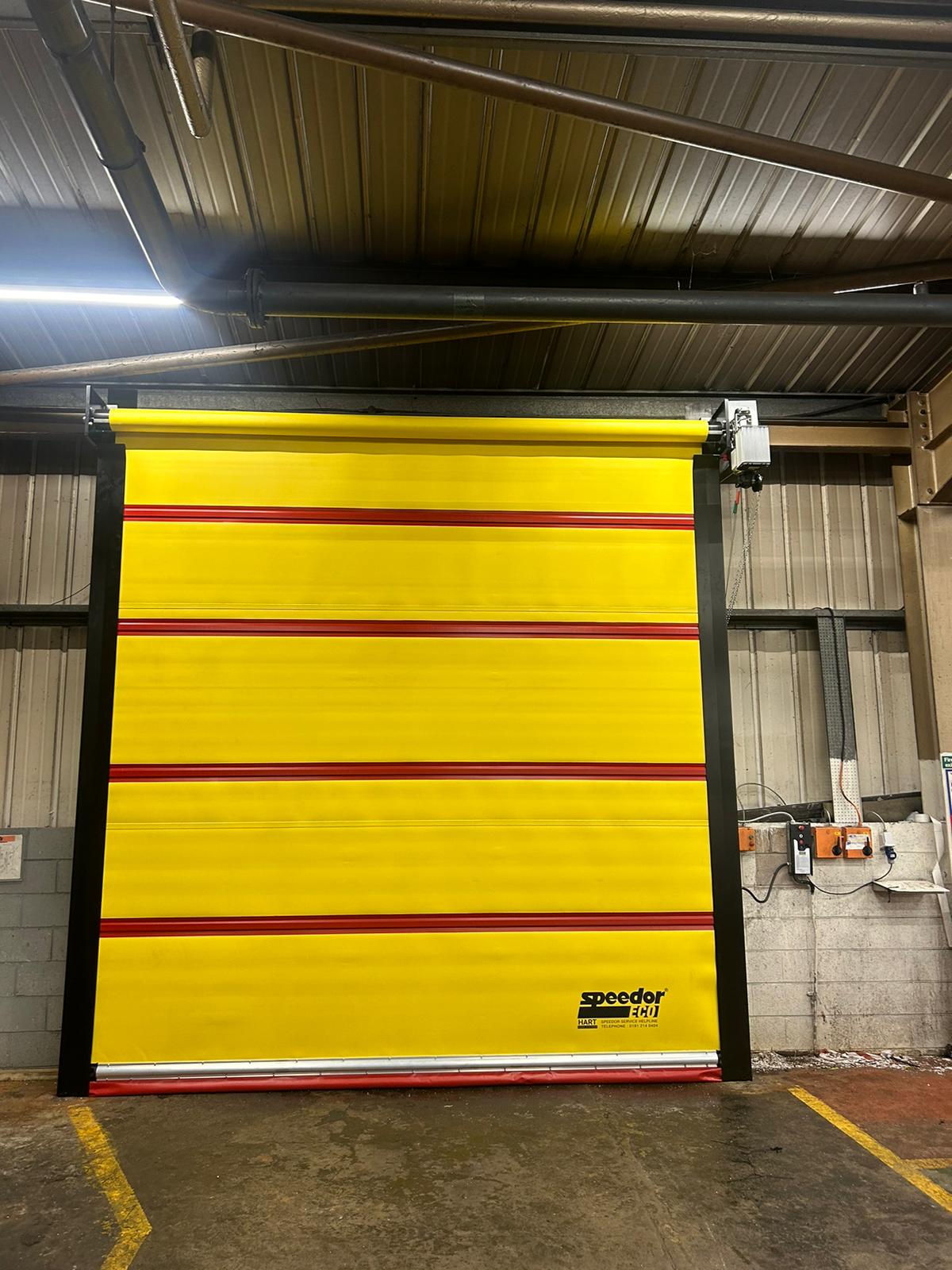

Speedor Eco

British manufactured high speed fabric doors

Hart's high-performance mid-range roller door is part of the Speedor® high speed door range. Durable in construction with high operating speeds, this mid-level high-speed door is suitable for internal and external openings.

Speedor Eco high speed door is designed for frequent use in high traffic situations and constructed to sustain thousands of opening and closing cycles. The Eco is a proven reliable product, lowering the cost of ownership with many years of use and low maintenance costs.

A neat and convenient safe access solution, the Eco includes movement and presence sensor options. These can deliver door activation with no touch, for clean and efficient automatic operation.

Drive options come in single speed or variable speed ranging from 0.66mps up to 1.2mps with a state of the art control panel providing fully automatic operation. Safety is provided by a pedestrian protecting light curtain retained within the multipurpose aluminium extruded side guides. A lightweight 900 gram PVC coated textile door curtain delivers a great low cost door access option. Heavier duty curtain option with upgraded colour range is also available.

Sustainable, strong, long-lasting, and easy to repair, our industrial doors are perfect a wide range of industrial and commercial applications.

We provide you with the best service by tailoring our door to your requirements and needs.

If you’d like to speak to us about how we can help you solve logistical challenges with a completely tailored high-speed door solution, contact us today on +44 (0) 191 214 0404

Size options

Up to 5m high
Up to 5m wide

Speed options

Standard opening – 0.8m sec
Standard closing – 0.8m sec
Variable speed options from 0.5mps up to 1.2mps available

Colour options

Technical spec

Download data sheets

Features and benefits of the Eco high speed door

Unique design, optimising flow of traffic and improving room climate
Suitable for internal and external openings.
Fast open and close for maximum environmental control and energy usage reduction.
Extremely reliable making them a cost-effective solution
Galvanised steel construction for enhanced strength
Highest levels of safety to protect your personnel and equipment
Tested and certified for full compliance
UKAC/CE approved for full standard conformity
Technologically advanced features to boost efficiency

Design options

Size: Custom- size up to 5000 mm
Speed: Single or variable speed opening at up to 1.2m/s
Colour: Yellow, Blue, Red, Green, Grey
Safety: Optical touch sensitive safety bottom edge, safety photocells, movement sensors, presence sensors, laser detection, traffic lights, audible warning
Operators: Push button, induction loop, photocells, movement sensors, pull cords, hand held or vehicle-mounted radio transmitters, radar
Vision Panel
Hood and motor hood cover

See NBS specification

Applications

Factories
Production Lines
Conveyors
Storage/Distribution warehouses
Cold Rooms
Food Preparation Area
Laboratories
Chemical Plant
Power Stations
Airport Terminals
Industrial Buildings
Pharmaceutical

Downloads

Certification / Conformity

Technical specification

Motor

All drives are GFA Safedrive® hollow shaft units providing as standard high precision worm drives incorporating a safety brake and digital limits. All wiring will be plug and play for ease of connection. Emergency operation via winding handle. Optional hand chain available.

Optional highly rated direct shaft drive right angle geared electric motor providing a variable speed of 1.2 meter per second to open and .4m/sec to close.

Control panel

Digital Control Panel to BS EN 12454. IP65 rated. The standard control panel unit is fully fitted with open, close and stop buttons, wireless receiver, two programmable relays and power supply socket. Compatible with control options including loop cards, radio control, traffic lights, wireless safety edges, pull cords etc

Optional variable speed control panel designed to provide for all conceivable options required for automatic door operations and interface with vehicles, specialist equipment including conveyors. The control box is steel fabricated and painted RAL 1021, IP54, lever lockable and complete with panel lid mounted isolator and membrane push button. Box is 300 wide 450 high and 135 deep. The inverter drive is 1.5Kw capable of operating the door system providing ramp start & stop and variable drive speeds. The panel is EMC tested and compliant with 89/336/EWG/ 91/263/EWG 92/031/EWG 93/068/EWG, low voltage 72/023/EWG 93/068/EWG. The relevant standards are EN 50081-1/03.93 & EN 50081- 2/03.94 & EN 61000-6-2/2001 EN60335-1/2003 type tested to EN12453/2001 EN12445/2001 EN12978/2003. Diagnostic display, panel mounted emergency stop, volt free outputs for control and position indication. All to latest IEE & EEC regulations.

ENGINEERING

Size

Speedor Mini high speed door dimensions: max 4000 x 4000 mm or a maximum surface area of 16 sq meters. All doors are made to measure to specific requirements. For larger external doors we recommend the Speedor Storm .

Curtain

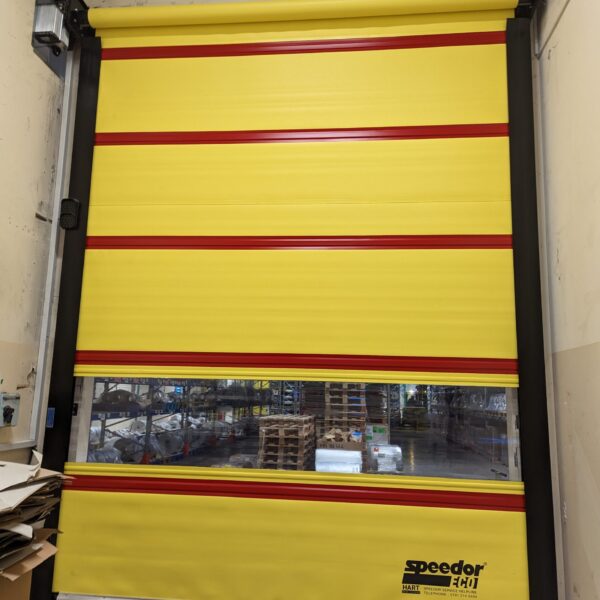

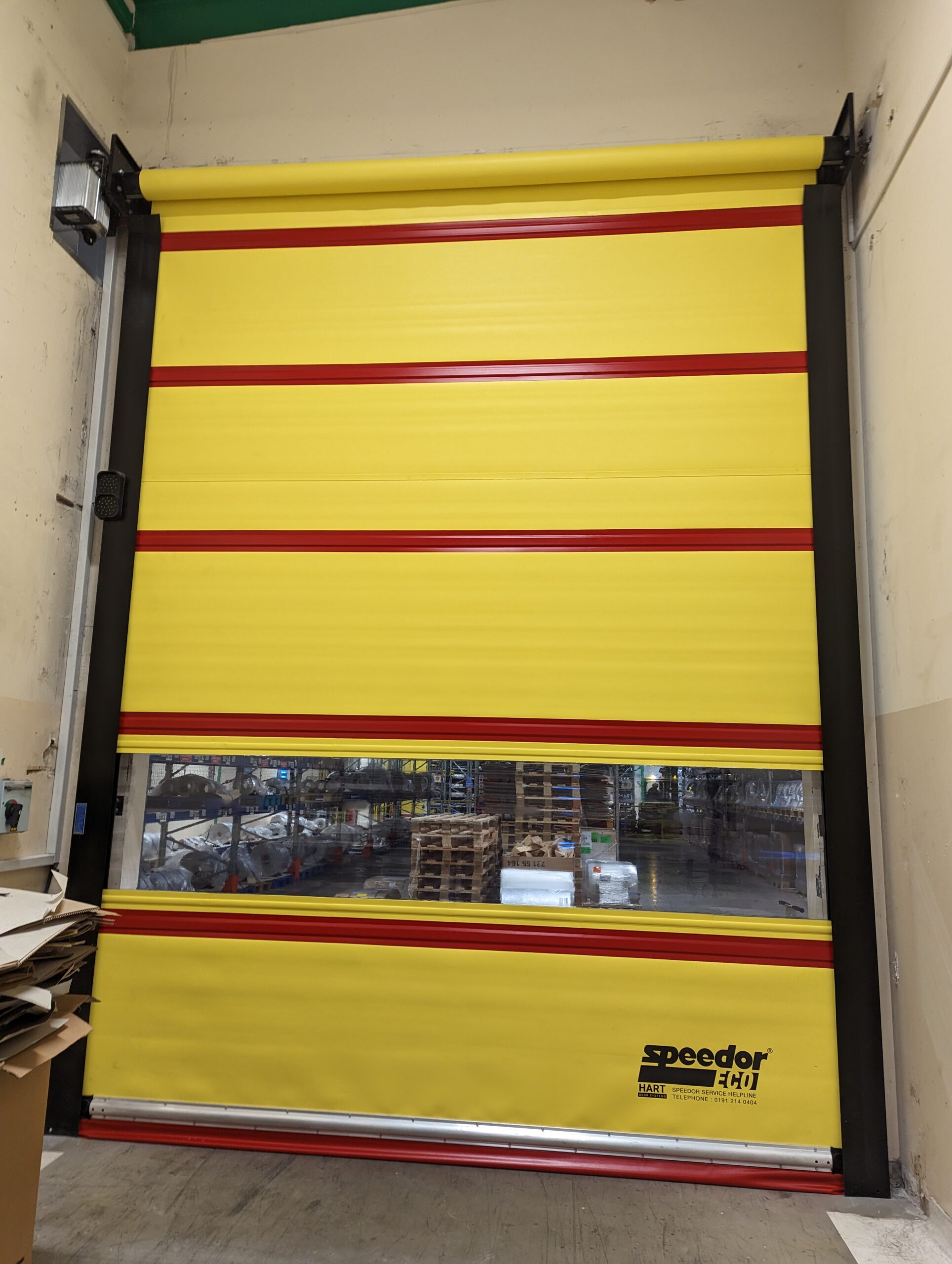

Flame retardant PVC fabric 900g available in white, red, blue and grey as standard, other colours available as an optional extra. Optional Vision Panel is available in 1mm thick clear PVC welded into the curtain. This is normally a 500mm high strip across the full door. View Speedor 900g Fabric Datasheet

Optional multilayer 2400g PVC and textile combine to ensure excellent strength, tear-resistance and long life. The curtain has very good isolation properties, high scratch resistance and is easy to clean. Curtain braces can be fixed horizontally within a contrasting PVC pocket which not only offer further strengthening and wind resistance, but also add to the visual appearance of the door system. View Speedor 2mm Twin Layer Fabric Datasheet

Safety

The standard door system includes a category E safety light curtain within an IP67 enclosure which protects the required area under the door system to conform to BSEN12453:2001 and ensures a contactless safety system.

Good practice: We recommend that forward warning photocells are fitted between 600mm and 750mm in advance of the door to both sides to act as further safety if pedestrians are to use the doorway.

Further options include traffic or warning lights, Klaxons, presence or movement detection systems. This will provide a non-contact safety system in most cases.

Frames/Hoods

Barrel Hood, Motor Hood and Infills can be supplied as optional items depending on requirements. Available in galvanised sheet or powder coated steel.

Operators

System operators are used to open the door, they include induction floor loops, photo cells, radar, hand held or vehicle mounted radio transmitters, press buttons or pull cords. Any of these operators can be used individually or in conjunction with others. They can be used to exclude pedestrians, be a security barrier or open for all.

Side Guides

Easy fit side guides constructed from twin aluminium extrusions to form a universal guide section. The guide section also contains a separate cable duct to allow cables to be retained neatly within the frame design. Plastic profiles on either side of the guide channel are fitted as standard with further optional brush seals. The guide assembly will also accept fixings for external brackets used for door safety systems or operators. Standard finish is mill aluminium with optional powder coating available.

PERFORMANCE

Speed

Standard opening Speed: 0.8 m/s
Standard Closing Speed: 0.8 m/s
Variable speed available

Wind Class

Wind resistance is minimal and therefore the door is suitable for internal openings or openings with low exposure to wind. Should low wind speeds be present around the opening, optional curtain braces can be fitted. When deciding on the wind class requirement, it is important to fully consider the unique environment each door system is to be installed within and the implications of building layouts, sizes and the possible resultant pressures on the door system.
